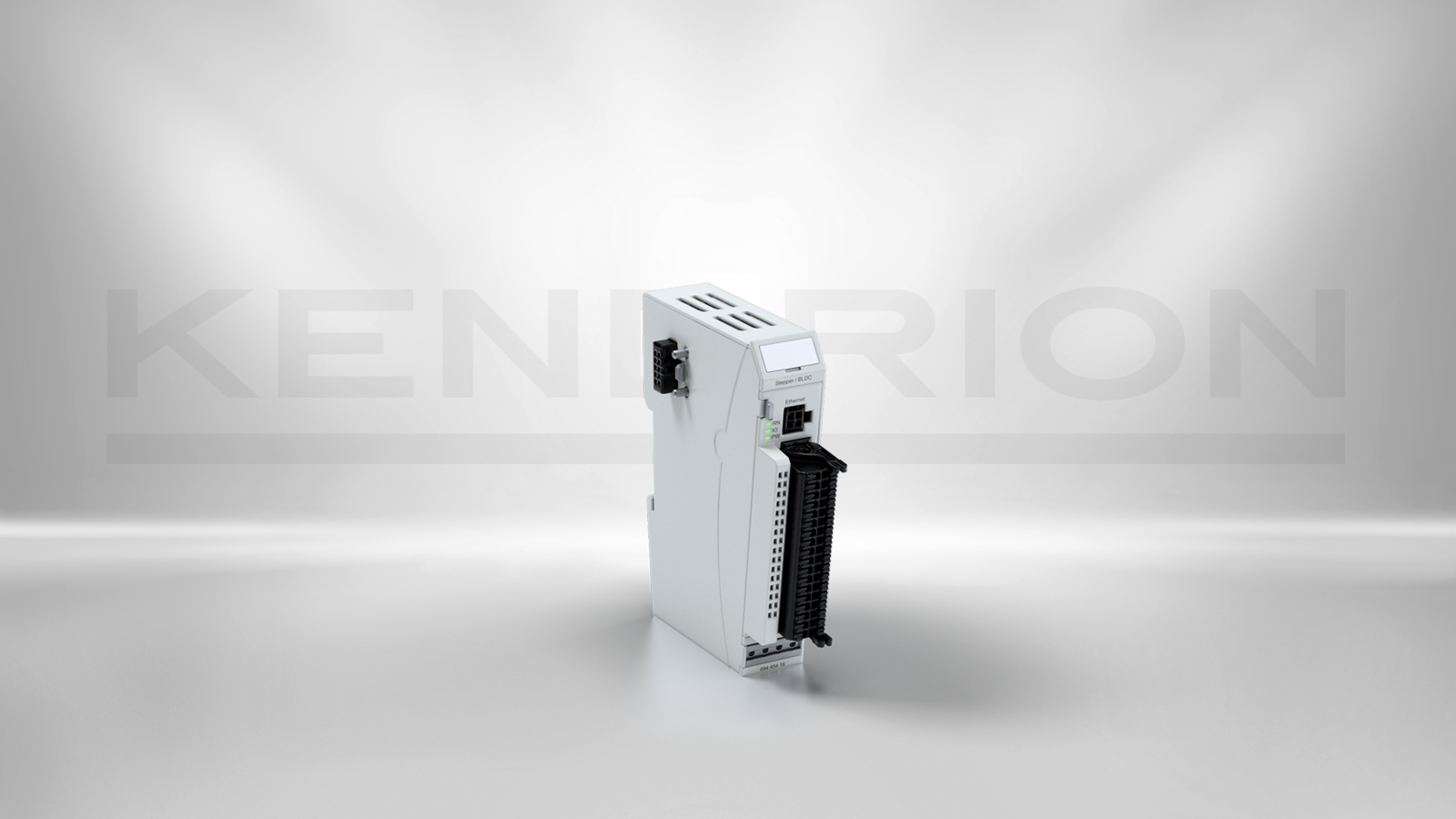

Kuhnke FIO
Drive Control

<table class=”table”>

<tbody><tr>
<th>Description</th>
<th>Value</th>
</tr>

<tr>
<td>Function</td>
<td>
motion control&nbsp;
</td>
</tr>

<tr>
<td>Model</td>
<td>
Control cabinet modul&nbsp;
</td>
</tr>

<tr>
<td>Digital I/Os (integrated)</td>
<td>
Outputs: Motor, Brake / Inputs: Incremental encoder, Hall encoder, 5 DI&nbsp;
</td>
</tr>

<tr>
<td>Integrated function</td>
<td>
interpolation positioning-operation speed-operation torque-regulation reference-motion according to DSP402&nbsp;
</td>
</tr>

<tr>
<td>Interfaces</td>
<td>
Motor-types: 2 phase step-motor or brushless DC motor with/without incremental-encoder connection voltage: 12 – 72 VDC Motor-nominal-current : 5A Options: LAN-interface&nbsp;
</td>
</tr>

<tr>
<td>Product status</td>
<td>
Standard product&nbsp;
</td>
</tr>

<tr>
<td>Field bus interfaces</td>
<td>
EtherCAT&nbsp;
</td>
</tr>

<tr>
<td>Type of connection</td>
<td>
female plug with PUSH IN spring connection&nbsp;
</td>
</tr>

<tr>
<td>Housing material</td>
<td>
Aluminium frame, plastic housing&nbsp;
</td>
</tr>

<tr>
<td>Dimensions (W x H x D)</td>
<td>
25 x 120 x 90 mm&nbsp;
</td>
</tr>

<tr>
<td>IP-Protection Class</td>
<td>
IP 20&nbsp;
</td>
</tr>

<tr>
<td>Supply voltage</td>
<td>
24 V DC (-15% … +20%)&nbsp;
</td>
</tr>

<tr>
<td>Operating temperature</td>
<td>
0 … +55°C&nbsp;
</td>
</tr>

<tr>
<td>Certifications</td>
<td>
CE, UL&nbsp;
</td>
</tr>

</tbody></table>
