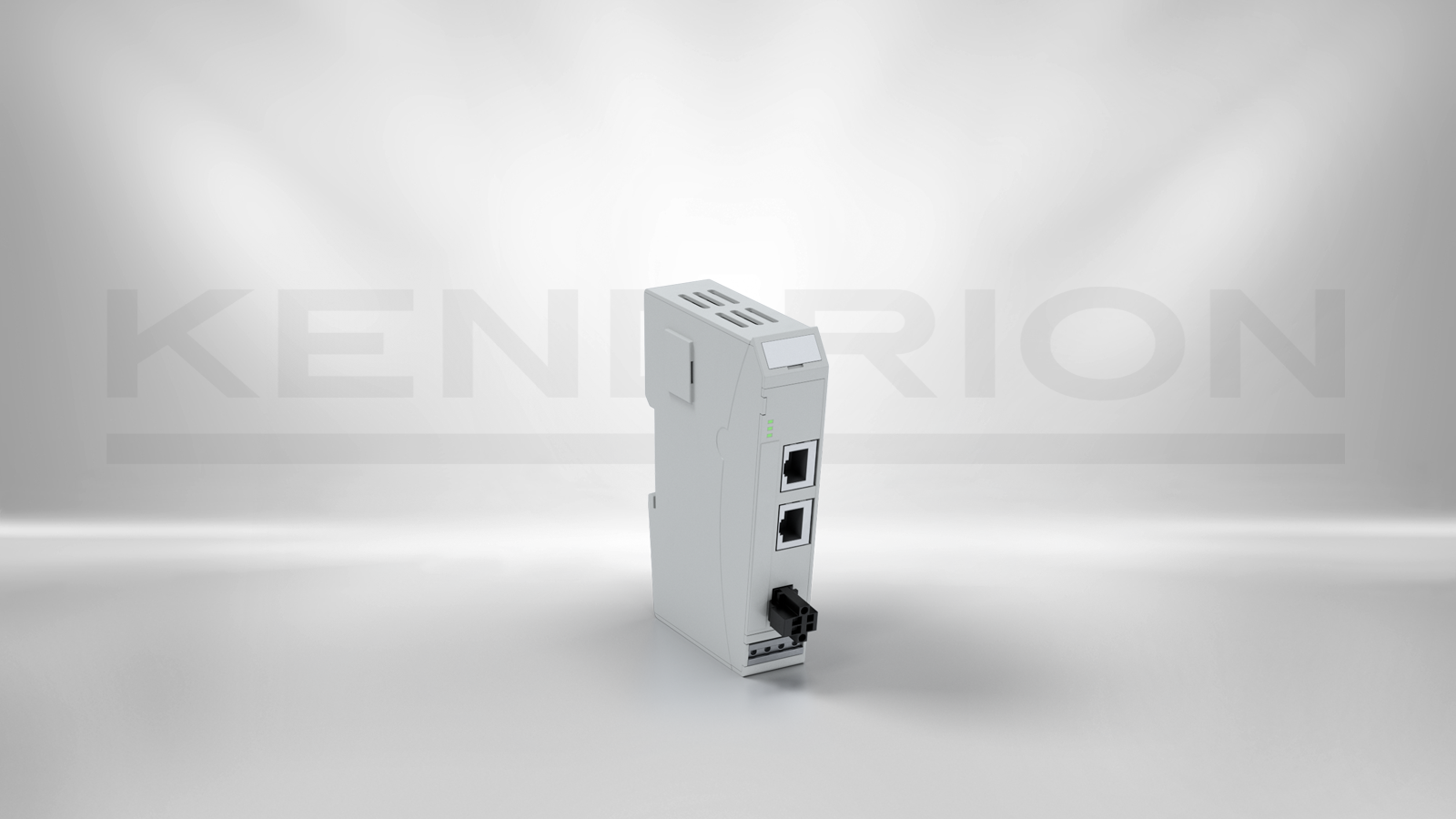

Kuhnke FIO Bus Coupler, 3A

Kuhnke FIO Bus Coupler 3A, bir EtherCAT ağındaki proses sinyallerini birbirine bağlamak için I/O modülleri sistemidir. Bus Coupler, fiziksel transfer teknolojisini (twisted pair) LVDS’ye (E-bus) dönüştürür ve LVDS modüllerinin ihtiyaç duyduğu sistem voltajlarını üretir.

2 x RJ45 socket
Status display via LEDs
Electronics supply for FIO expansion modules 3 A

Description	Value
Function	communication
Model	Control cabinet modul
Product status	Standard product
Field bus interfaces	EtherCAT

Description	Value
Function	communication
Model	Control cabinet modul
Product status	Standard product
Field bus interfaces	EtherCAT
Type of connection	Spring-assisted connector
Status indication	LED, EtherCAT Status
Housing material	Aluminium frame, plastic housing
Dimensions (W x H x D)	25 x 120 x 90 mm
IP-Protection Class	IP 20
Supply voltage	24 V DC (-15% … +20%)
Operating temperature	0 … +55°C
Immunity	Zone B according to EN 61131-2
Certifications	CE, UL
