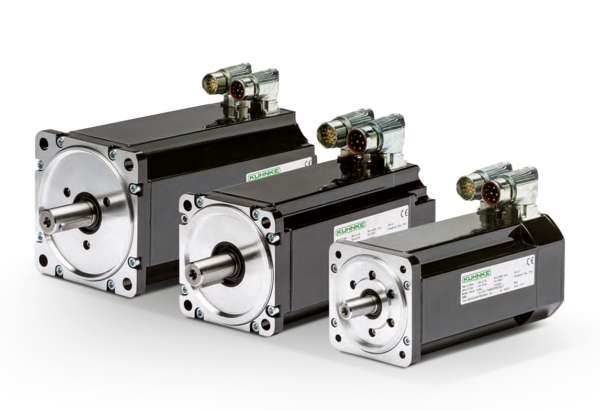

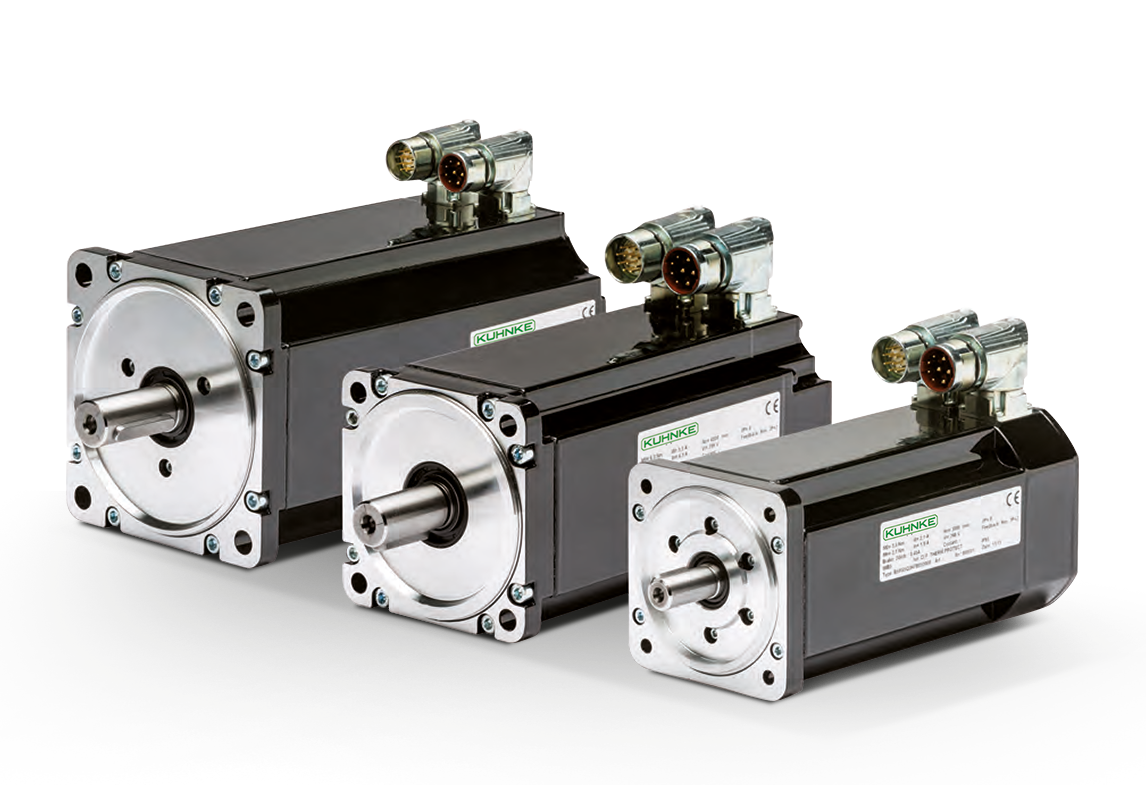

B Serisi Servo Motor

Drive End cooling (liquid coolant)
Low voltage special winding
Water cooling (jacket) for medium and large size motors
Fly – connectors for cabling
230V application
One cable solution
Safety application
ATEX Certification – II 3G Ex nA IIC T155°C (T3) Gc and II 3D Ex tc IIIC T135°C Dc (a dedicated brochure is available)

Type	Square flangez SF [mm]	Torque [Nm]	Rated speed[rpm]	Centring diameter ø – CD [mm]	Bolt circle diameter ø – BC [mm]	Shaft diameter Ø – SD [mm]	Shaft length SL [mm]
B20Q	40	0.18 to 0.32	6000	Ø30h7 :selected:	46	8h6	20/25
B28Q	58	0.25 to 1.25	3000 – 6000	Ø40j6 :selected:	63	9j6	20
B30J	60	0.7 to 1.4	6000	Ø50h7 :selected:	70	14h6	25/30
B36Q	70	0.6 to 1.8	3000 – 6000	Ø60j6 :selected:	75	11j6	23
	70	2.4 to 3	3000 – 6000	Ø60j6 :selected:	75	14j6	30
B40J	80	0.7 to 2.7	3000 – 6000	Ø70h7 :selected:	90	16h6	35/40
B56Q	91.3	1.35 to 4.5	3000 – 6000	Ø80j6 :selected:	100	14j6	30
B63Q	100	4 to 10	>3000 – 4500 – 6000	Ø95j6 :selected:	115	19k6	40
B63Y	116	6 to 8	3000 – 4500	Ø110j6 :selected:	130	19j6	40
	116	10 to 14	3000 – 4500	Ø110j6 :selected:	130	24j6	50
B71Q	142	4.5 to 26	2000 – 3000 – 4500	Ø130j6 :selected:	165	24k6	50
	142	29 to 38	2000 – 3000 – 4500	Ø130j6 :selected:	165	28k6	58
B100J	190	20 to 42	2000 – 3000	Ø180j6 :selected:	215	32k6	58
	190	56 to 80	2000 – 3000	Ø180j6 :selected:	215	38k6	80
B1321	240	42 to 73	1500 – 2000 – 3000	Ø230j6 :selected:	265	38k6	80
	240	81 to 120	1500 – 2000 – 3000	Ø230j6 :selected:	265	42k6	110
B160Q	270	140 to 240	1500 – 2000 – 3000	Ø250h7 :selected:	300	55m6	110
	270	300	1500 – 2000 – 2500	:selected: Ø250h7	300	60m6	140
