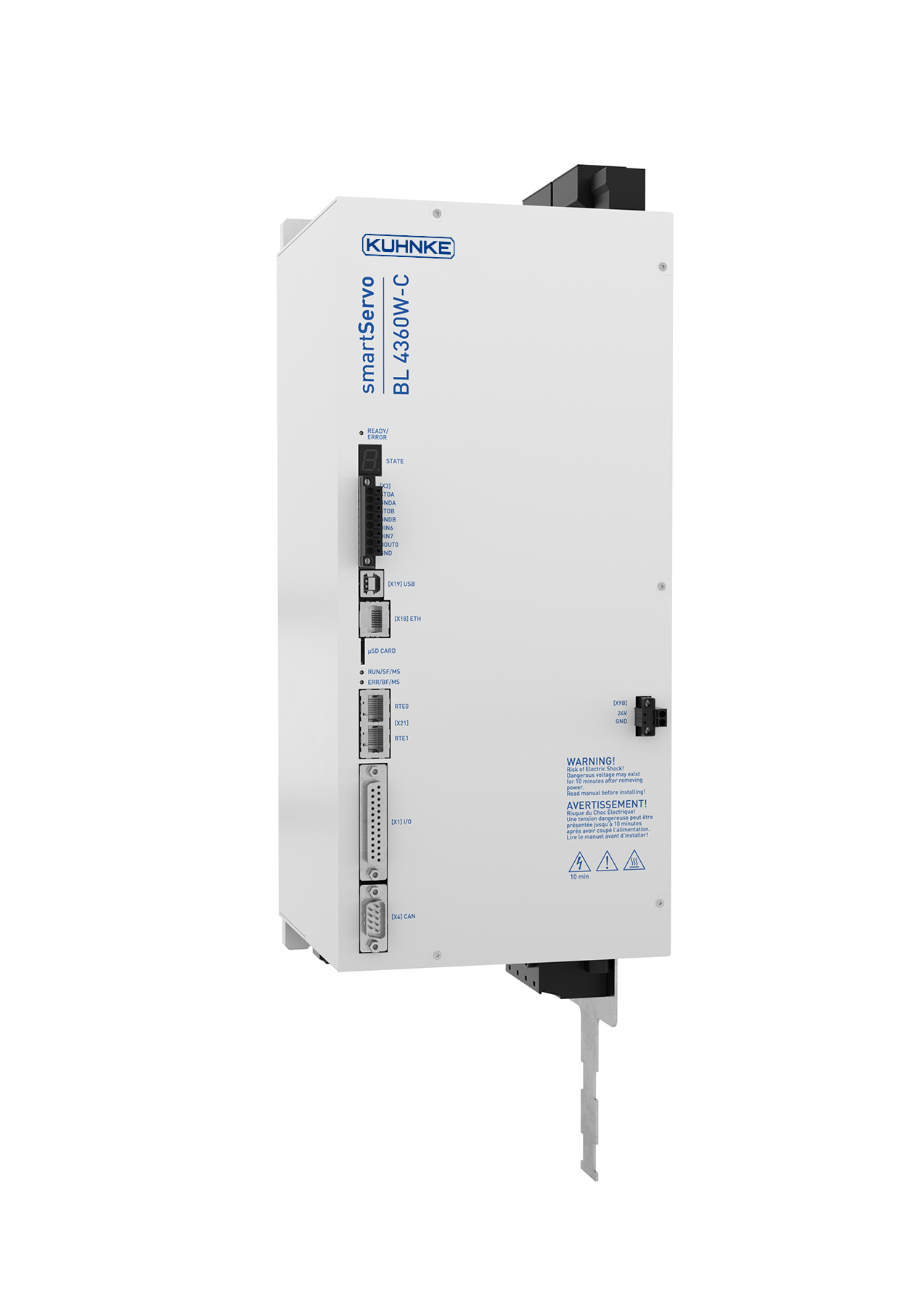

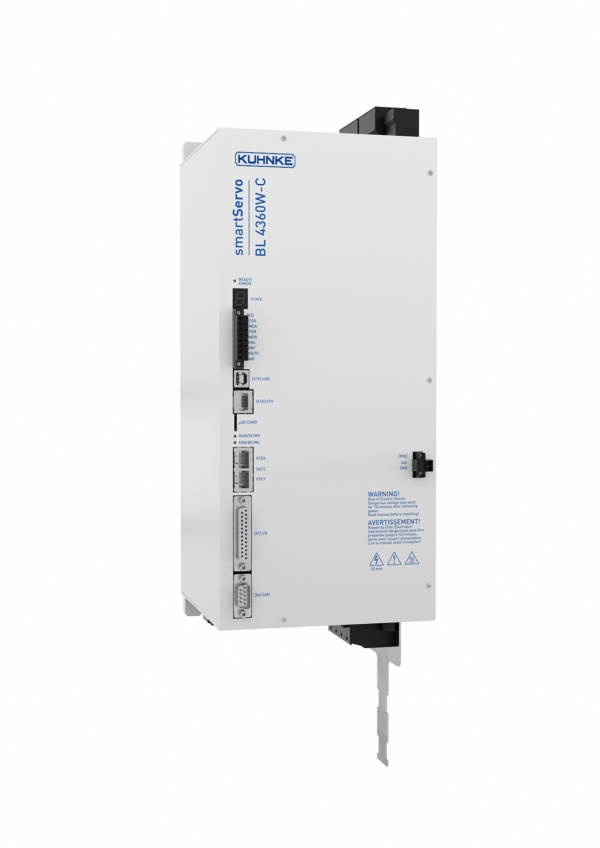

BL4360W.C

Çok sayıda entegre yazılım işlevi, BL servo sürücüyü gerçek anlamda çok yönlü sürüş teknolojisine dönüştürüyor.
BL servo sürücüler, sadece çok sayıda motor tipini ve tüm ortak konum enkoderlerini desteklemekle kalmaz, aynı zamanda, entegre teknoloji fonksiyonlarının basit parametrelendirilmesi yoluyla çeşitli uygulamalara çok esnek bir şekilde uyarlanabilir. Sürücüdeki harici sinyallerin yüksek hassasiyetli değerlendirmesi, mümkün olan en kısa çevrim sürelerine izin verir.

Technology

	Positioning Whether linear, jerk-limited or torque-limited: With the integrated positioning control every motion task can be easily realised.		Path program / Linking All 256 positioning sets can be linked to solve complex positioning tasks without external control system. Furthermore, digital inputs allow situation-related branching.
	Flying saw By integrating a „flying saw“ into the drive, not only short cycle times, but also extremely high accuracies can be reached.		Electronic gear/ Synchronisation The position-synchronous or speed- synchronous motion of various drives with variable gear ratios can be quickly parameterised via the software assistant
	CAM disk Together with the integrated virtual master and with the synchronization the electronic cam can be used to coordinate several drives.		Linear motors Special procedures for the determination of the commutation position and corresponding monitoring functions allow the operation of linear motors without commutation information.
	Rotary table For rotary table applications, several rotary axis modes are available. These can be combined with the cam disk and with the electronic gear.		Switching cams Position trigger, rotor position trigger and switching cams in connection with the cam disk can be easily parametrised and connected to digital outputs.

Safety

	STO – Safe Torque Off Interruption of the power supply to the drive in accordance with EN 61800-5-2. This function ensures that the drive can no longer generate any power.		SS1 – Safe Stop 1 The drive is braked to a standstill independently within a defined time using a defined braking ramp, and the power supply is then safely switched off. SS1, type C is supported.
	SOS – Safe Operating Stop This safety function is used when the motor position or axis position must be actively maintained and safely monitored.		SS2 – Safe Stop 2 The drive is braked to a standstill independently within a defined time using a defined braking ramp. After the defined time has elapsed, SOS (safe operating stop) is triggered. All three variants described in the standard are supported.
	SLS – Safely Limited Speed This safety feature prevents the motor from exceeding a specified speed limit.		SSR – Safe Speed Range The SSR safety function is used when the speed of the drive must be maintained within a specified range.
	SBC – Safe Brake Control The SBC function provides a safe output signal to control external motor brakes. This prevents unwanted movement in the torque-free state. It is also possible to control an external holding brake with its own power electronics via safe outputs.		SSM – Safe Speed Monitor The SSM function monitors the speed of the drive within specified limits. If these limits are exceeded or not reached, a safety-related signal output is triggered.
	SDI – Safe Direction The SDI safety function ensures that the drive can only move in the specified direction.

Connectivity

Encoder interfaces
